Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"

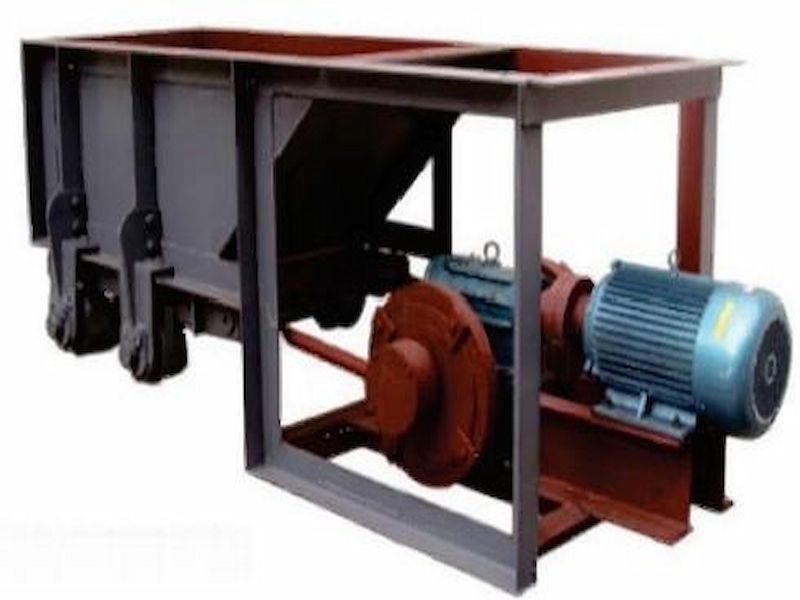

The width of the trough feeder is 2 to 2.5 times the maximum particle size of the feed.Transport bulk  materials from the storage bin to the receiving device(materials that are not suitable for conveying powder  state).They can be erected on the ground or hoisted onto the discharge port of the ore bin.The groove  bottom plate undergoes reciprocating motion with a stroke of 20-60 times/min and a stroke of 20-200mm. The stroke can be adjusted appropriately by the eccentric wheel of the driving device,and the eccentricity  is  half  of  the  stroke.It  is  suitable  for  industrial  departments  such  as  metallurgy,mining,engineering, construction,mineral    processing,coal,etc.

CATHAY product advantages:

✓ Super durability: thickened tank and replaceable wear-resistant lining to extend the service life of the equipment

✓ Accurate feeding: equipped with variable frequency speed regulation device to achieve precise flow control

✓ Low energy consumption design: optimize the transmission system and reduce operating costs

✓ Intelligent optional: support automatic control system to achieve intelligent monitoring and remote management

Choose CATHAY, choose a reliable and efficient material conveying solution!



Trough Feeder Technical Parameters Specifications



规格 Model	给料粒度 (mm) Feeding		槽底往复数 (min-1) Tank bottom		曲柄行程(mm) Crank stroke	给料能力(t/h) Feeding capacity	功率(kw) Power	外形尺寸(mm) Shape size	重量(kg) Weight
400×400	100	18.8		1.2		2.5-3	4	2350×725×625	535
600×500	205	38.9		0-50		10.5-25.5	4	2750×910×855	1054
700×500	250	20-30		0-50		10-35	4	3200×950×900	1100
980×1240	350	23.7		0-50		36-90	7.5	3560×1000×1070	1700
1000×1900	300	27		0-125		300	7.5	3900×1590×1340	2691
1060×2900	300	30		0-125		400-900	15-30	4585×2953×1756	3260
1200×1000	400	30.85		50-125		165-415	15	3600×1357×1310	2600
1400×2000	300	8.15		50		50-101	7.5	3920×1777×1103	3472
1400×2300	300	30.85		90-125		430-900	18.5	4460×2090×3804	6895
