Durable feeding equipment designed for mines and ore dressing plants, adopts a swinging structure to achieve uniform and controllable material transportation. It has the characteristics of strong wear resistance, simple maintenance, stable operation, etc., and is suitable for accurate feeding of bulk materials such as ore and coal.
Core advantages:
✔ Made of wear-resistant steel plate, long life
✔ Adjustable feeding amount, high precision
✔ Simple structure, low failure rate
✔ Suitable for all kinds of crushing and screening equipment

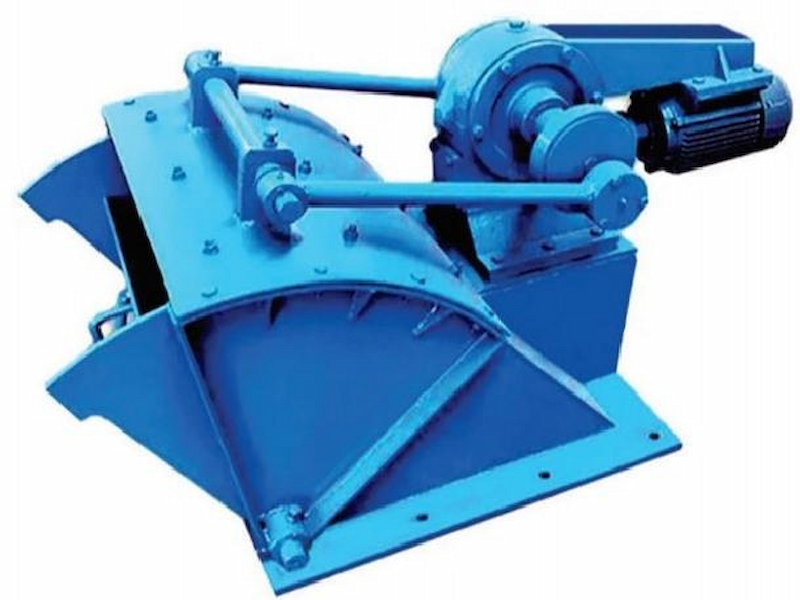

The pendulum feeder is a mechanical device for continuous and uniform feeding,which is installed under a storage tank or funnel.Dry and non-caking materials such as ores,coals,etc.It can also be used as a locking device when the machine is not working.Thanks to the adoption of Worm gear reducer,with compact structure and reliable sealing device,is not easy to get dirt into the interior.Impacts work.
Applicable scenarios:
Metal/non-metal mines
Ore dressing plant crushing system
Coal and aggregate production line
Core advantages of CATHAY pendulum feeder
1. Precise and controllable feeding
-Using unique swing structure to achieve uniform and continuous material conveying
-Equipped with variable frequency speed control device, the feeding amount and speed can be accurately adjusted
2. Super wear-resistant design
-Key components are made of Mn16 high manganese steel or wear-resistant alloy lining
-The trough body is thickened, and the service life is more than 50% longer than ordinary products
3. Efficient and stable operation
-Optimized counterweight design, smooth operation, adjustable amplitude
-Extremely low failure rate, can operate continuously for 24 hours
4. Simple and economical maintenance
-Modular design, key components can be replaced quickly
-Few lubrication points, small daily maintenance workload
5. Wide applicability
-Can handle various block and granular materials (ore, coal, aggregate, etc.)
-Adapt to working environment of -30℃ to 60℃
6. Intelligent upgrade options
- Optional intelligent control system to achieve remote monitoring and automatic adjustment
- Support access to factory DCS system
7. Energy saving and environmental protection
- Energy consumption is 15-20% lower than similar products
- Closed structure design to reduce dust spillage
8. Safe and reliable
- Overload protection device to avoid equipment damage
- Comply with mine safety regulations
These advantages make CATHAY pendulum feeder an ideal choice for mining, building materials, metallurgy and other industries, which can significantly improve production efficiency and economic benefits.
Technical parameters of pendulum feeder
|
Model |
Outlet(mm) |
Stroke(mm) |
摆动次数 (次/min) |
最大给料 (mm) |
给料量(t/h) Capacity |
功率(kw) |
Shape size (mm) |
Weight (kg) |
|
300×300 |
300×125 |
0-90 |
68 |
20 |
8 |
1.1 |
1070×550×560 |
213 |
|
400×400 |
400×50-130 |
0-170 |
47 |
35 |
12 |
1.1 |
1133×925×855 |
256 |
|
600×600 |
600×150-150 |
0-206 |
45.5 |
50 |
25 |
1.5 |
1325×820×740 |
558 |
