Ore dressing machine

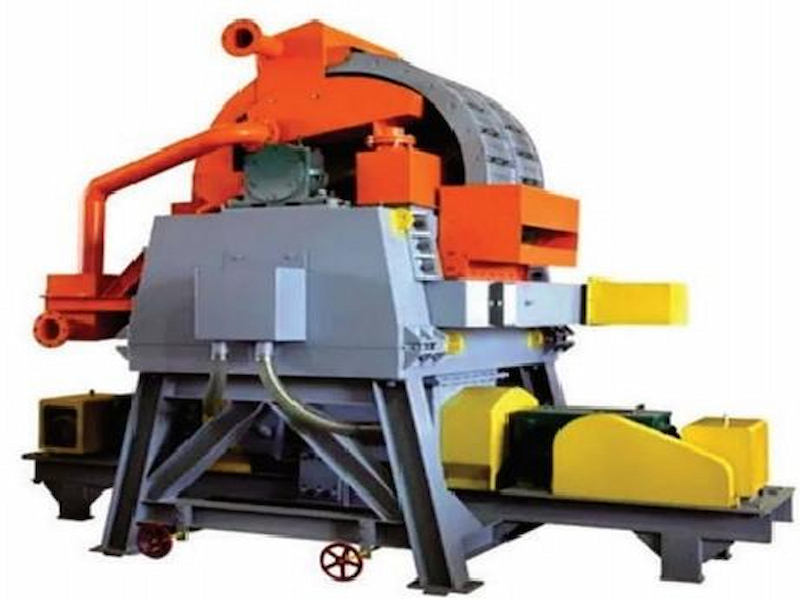

High gradient magnetic separator is a strong magnetic separator used for screening weak magnetic minerals. It is suitable for hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalite, red mud, etc. with a particle size below 3mm. It is used for iron removal and purification of non-metallic minerals. For example: wet magnetic separation of materials such as quartz, feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, magnetite, pyrrhotite, roasted ore, ilmenite, etc. It is also used for iron removal of materials such as coal, non-metallic minerals, and building materials.

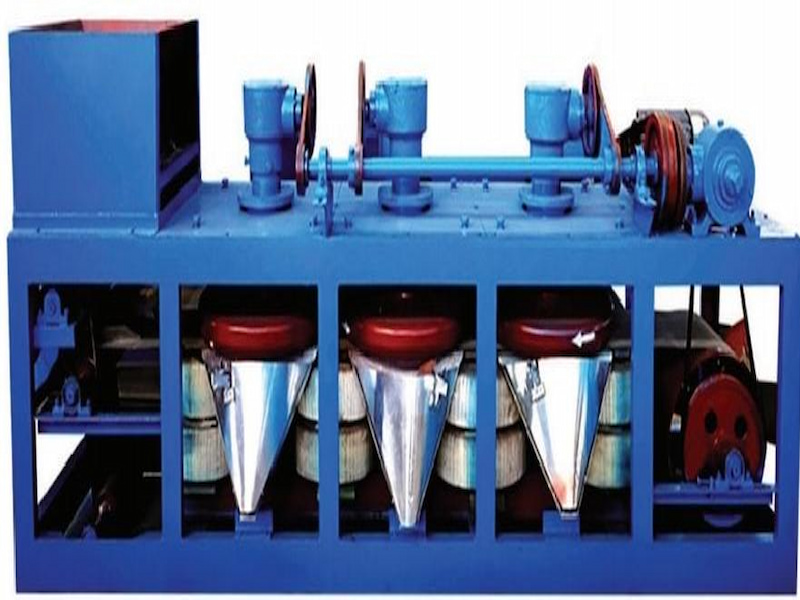

The three-disc belt magnetic separator is suitable for the selection of various metallic minerals with magnetic differences or for the removal of iron from non-metallic minerals, such as rare earth ore, chromite, titanium ore, rare earth ore, tungsten-tin ore, niobium-tantalum ore, limonite, ilmenite, zircon, rutile, monazite, garnet, kyanite, columnar stone, feldspar, quartz, etc.

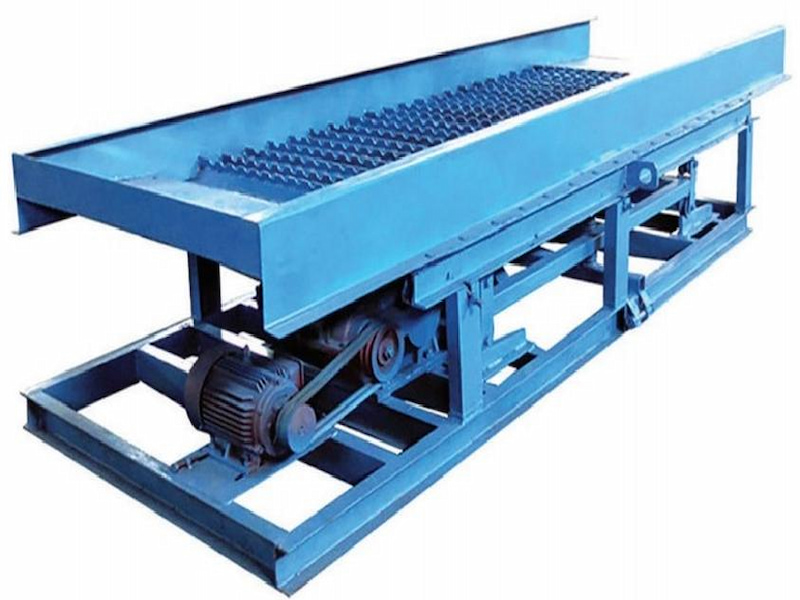

The agitation chute is a new type of placer gold ore selection equipment developed on the basis of ordinary fixed chute. It combines the advantages of fixed chute and jig, overcomes the disadvantage of fixed chute easy to harden and the disadvantage of jig high yield, thus achieving the characteristics of low yield and not easy to harden. Improve the gold recovery rate. Because the agitation chute discharges concentrate intermittently, the enrichment ratio is dozens to hundreds of times higher than that of jig.

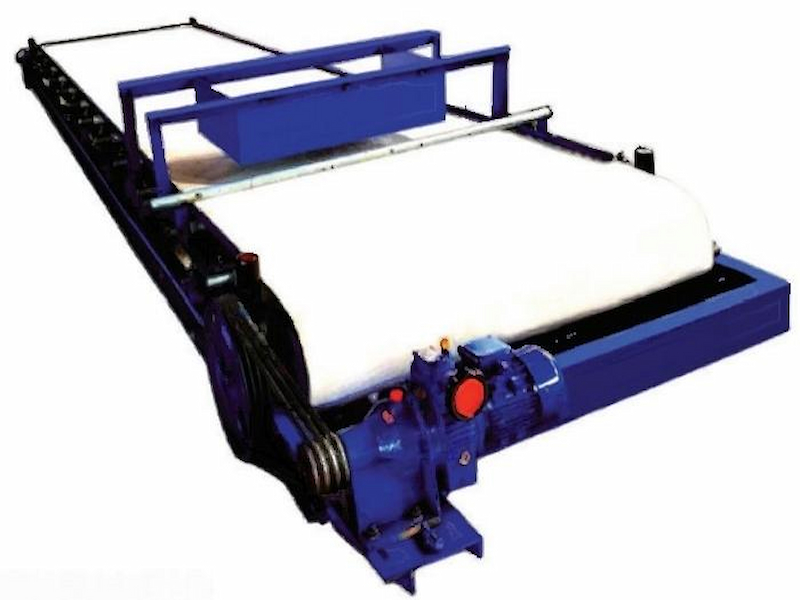

Blanket machine is also called cloth trench machine, a kind of gravity separation equipment, which is used for selecting and sorting raw materials above 80 mesh. It is very suitable for the recovery and re-purification of various rare metals such as tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earth, rutile, monazite, tantalum niobium, garnet, quartz, kaolin and other products.

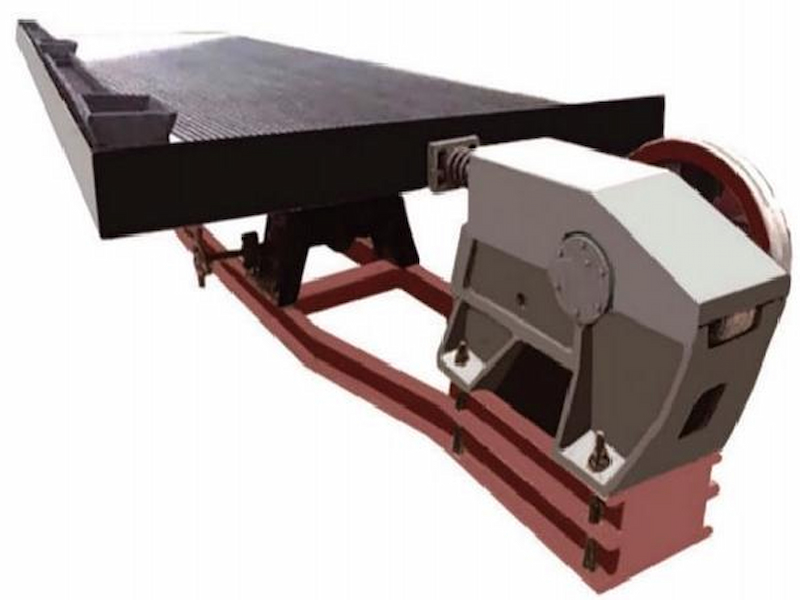

The ore dressing shaking table is composed of three parts: the bed surface, the frame and the transmission mechanism. It can make the ore particles move in different directions according to their density and particle size, and spread out in a fan shape along the diagonal from the feed trough, and then be discharged along the edge of the bed surface in sequence. The discharge line is very long, and it can accurately produce a variety of products of different qualities, such as concentrate, sub-concentrate, medium concentrate and tailings. The ore dressing shaking table is used as a gravity separation equipment and has been widely used in the separation of minerals such as placer gold, mainly for gold or coal separation.

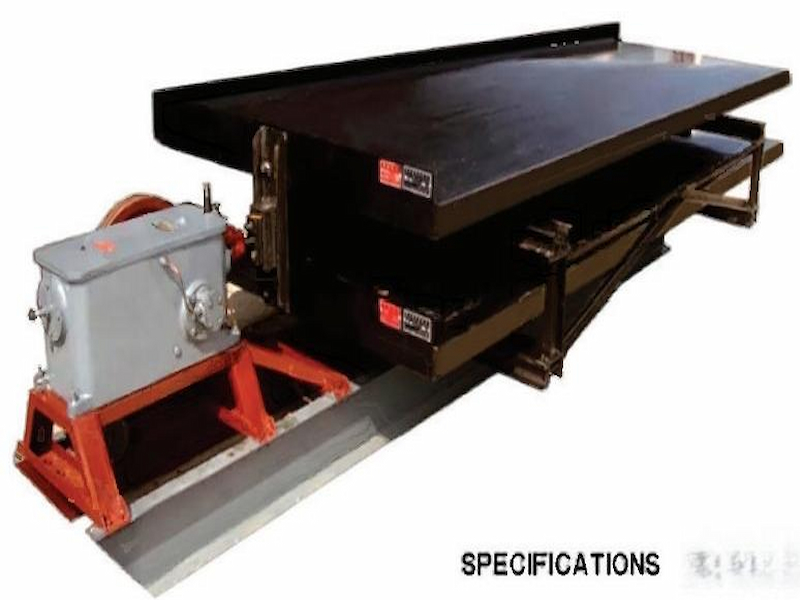

The Yunnan Tin Shaking Table is an improvement of the original Soviet CC-2 shaking table made by the former Yunnan Tin Machinery Factory in my country. It is called the Yunnan Tin Shaking Table. The bed surface is flat, has good abrasion resistance, is durable, not easy to deform, and is easy to repair locally. The asymmetry of the bed head movement is large, and there is a wide differential adjustment range to adapt to different feed particle sizes and selection requirements. The bed head mechanism operates reliably, has few easily worn parts, and does not leak oil.

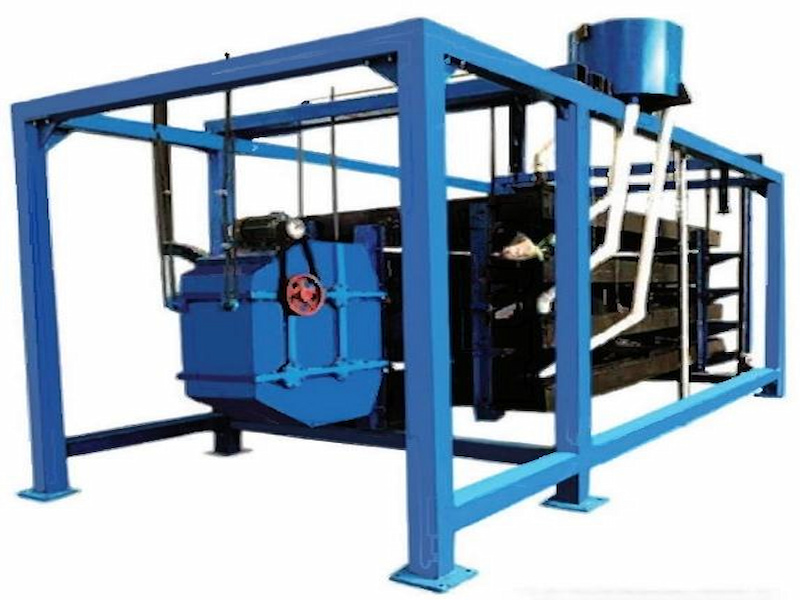

Suspended multi-layer shaking table is one of the main equipment for gravity separation in mineral processing equipment. It is widely used to separate tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold, iron, manganese ore and other rare metals and precious metals such as coal. It can also be used in coal mines. The shaking table can be used for roughing, cleaning, sweeping and other operations, and can separate different particle sizes such as coarse sand (2-0.5mm), fine sand (0.5-0.074mm), and ore mud (-0.074).

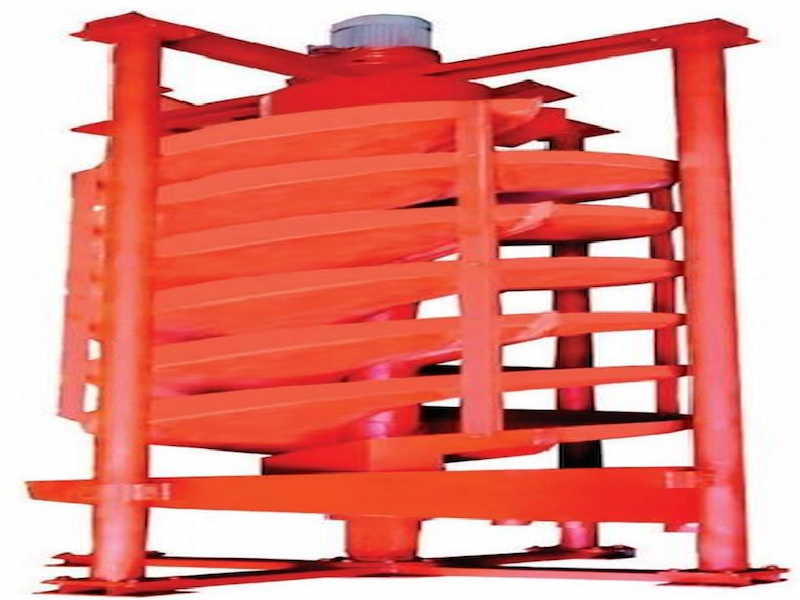

The rotating spiral chute is made by rotating the trough body on the basis of the fixed spiral chute. It is driven by the upper transmission mechanism to slowly rotate along the direction of the slurry flow. The upper surface and the spiral diameter promote faster ore separation, and the sorting effect is better than that of the general fixed spiral chute, with a high enrichment ratio, an effective sorting particle size range of 0.6-0.05 mm, and a particle size recovery rate higher than that of the spiral chute. It is suitable for sorting fine iron ore, ilmenite ore, chromite ore, pyrite ore, tin ore, tantalite niobium ore, placer gold ore, coal, monazite ore, rutile ore, zircon ore, rare earth and other metals and non-ferrous metal minerals with sufficient density ratio difference.

The spiral chute is suitable for sorting fine materials with a particle size of 0.3-0.02 mm, such as iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphite, tungsten ore, tin ore, tantalum ore, niobium ore, and other nonferrous metals, rare metals and non-metallic mineral bodies with different specific gravities. It has the advantages of stable sorting process, easy control, wide range of allowable variation of feed concentration, high enrichment ratio, high recovery rate, small footprint, low water consumption, simple structure, no power required, large processing capacity, simple installation, convenient operation, small investment and quick results.

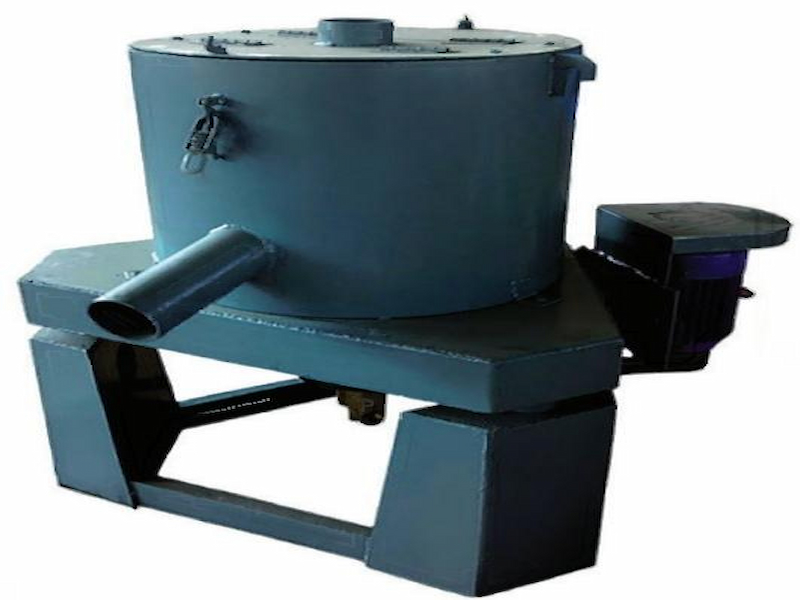

The beneficiation centrifuge,as a gravity separation equipment,is one of the commonly used equipment in beneficiation production. Up to now,the centrifuge beneficiation has    undergone  decades  of  development  in   China  and can now separate tin ore,tungsten ore,   and iron ore.The beneficiation centrifuge can fully recover fine ore particles,and has a large processing capacity and low recovery particle  size limit.It is also widely chosen because the  equipment is easy to operate.

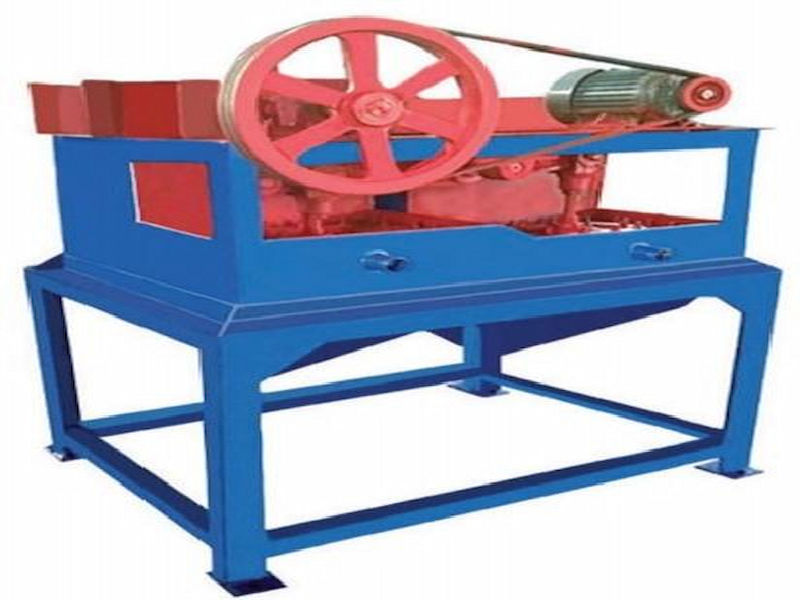

The diaphragm jig is a jig that uses the reciprocating motion of the diaphragm to make the separation medium pulsate. Due to the small amplitude and low vibration intensity, when the water flows upward, the particle group is in a loose suspension state. At this time, the light, heavy, large and small mineral particles have different sedimentation speeds and will move relative to each other. The heavier coarse particles settle in the lower layer. When the water flows downward, a suction effect is generated, and a "segregation" phenomenon occurs, that is, the mineral particles with high density and small particle size pass through the gaps with high density but large particle size and enter the lower layer.

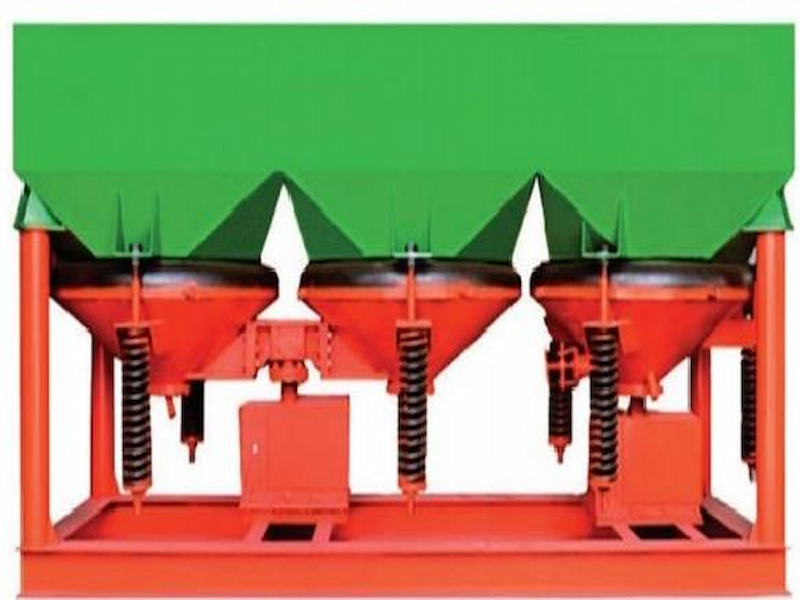

The sawtooth wave jig occupies a small area and is simple and convenient to operate. It is a new type of efficient, energy-saving and environmentally friendly mineral processing equipment developed and produced in recent years. It has a good effect on the beneficiation of various metal and non-metallic minerals, especially suitable for the beneficiation of fine-grained minerals. It plays an extremely important role in the recovery and treatment of metal smelting slag and mine tailings treatment.
